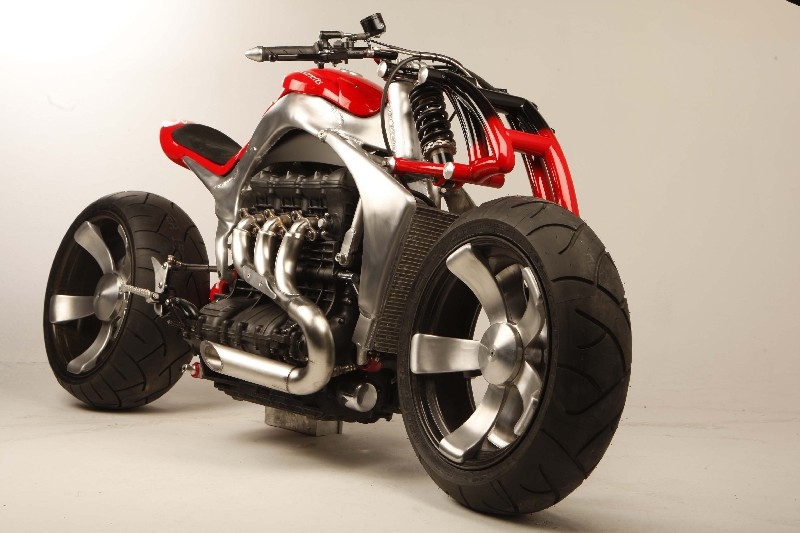

Custom Bike - Triumph Rocket III - 커스텀 바이크

소형차/ 2륜 2008.04.17 10:04

사용자 삽입 이미지
(그림을 클릭하면 크게 볼 수 있음)


[자료 = http://www.motorcyclenews.com/]


아래 것이 원래 `트라이엄프 로켓 3(Triumph Rocket III)'

원 모델도 배기량 2리터이 넘는 3기통 엔진을 가진 평범하지 않은 녀석이다.

(그림을 클릭하면 크게 볼 수 있음)
사용자 삽입 이미지
사용자 삽입 이미지

TRIUMPH ROCKET III – TECHNICAL SPECIFICATION
ENGINE
Type   Liquid-cooled, DOHC, longitudinal in-line 3-cylinder, 12 valves
Capacity   2294cc
Bore/Stroke   101.6 x 94.3mm
Compression Ratio   8.7:1
Fuel System   Multipoint sequential electronic fuel injection
Ignition   Digital – inductive type – via electronic engine management system
TRANSMISSION
Primary Drive   Gear
Final Drive   Shaft
Clutch   Wet, multi-plate
Gearbox   5-speed
CYCLE PARTS
Frame   Tubular steel twin spine
Swingarm   Twin-sided, steel
Wheels Front Alloy 5-spoke, 17 x 3.5in
  Rear Alloy 5-spoke, 16 x 7.5in
Tires Front 150/80 V17
  Rear 240/50 V16
Suspension Front 43mm upside down forks
  Rear Chromed spring twin shocks with adjustable preload
Brakes Front Twin 320mm floating discs, 4 piston calipers
  Rear Single 316mm disc, 2 piston caliper
DIMENSIONS
Length   2480mm (97.6in)
Width (Handlebars)   880mm (34.6in)
Height   1150mm (45.3in)
Seat Height   740mm (29.1in)
Wheelbase   1690mm (66.5in)
Rake/Trail   32º/152mm
Weight (Dry)   320kg (704lbs)
Fuel Tank Capacity   25 liters (6.6 gal US)
PERFORMANCE (MEASURED AT CRANKSHAFT TO DIN 70020)
Maximum Power   142PS (140bhp) at 5,750rpm
Maximum Torque   200Nm (147ft.lbf) at 2,500rpm
